From "Fried Noodles" to "Artwork": 11 Real 3D Printing Failures to Help You Avoid Common Pitfalls

One of the most interesting things about 3D printing is that you never know what you'll end up with after pressing "Start Print."

An hour later, it could be a delicate piece; or it could be a pile of "golden fried noodles"; it could even evolve from a normal model into a "contemporary artwork" that no one expected.

For 3D printing enthusiasts, a failed print isn't what's scary—what's scary is not knowing why it failed.

We launched a 3D printing failure case sharing campaign in our community, inviting everyone to show off the bizarre malfunctions they've encountered, and share the causes and solutions behind them.

From first-layer adhesion, stringing, and nozzle clogs, to nozzle damage, filament issues, and build plate maintenance... these seemingly varied "failure scenes" actually correspond to very typical printing problems.

This time, let's compile these real cases—after all, the failures others have experienced are our best guide to avoiding pitfalls.

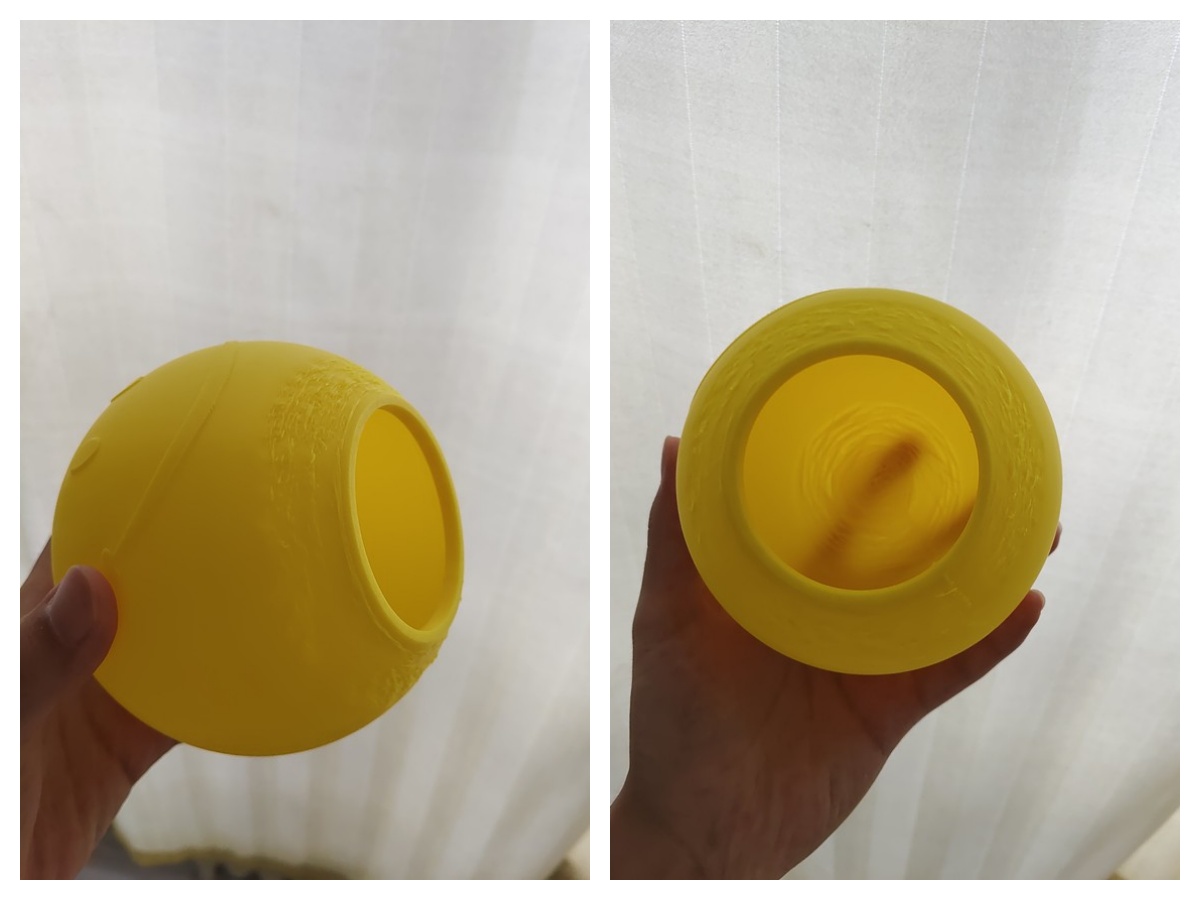

01｜Thin-wall model turns into "artwork"

Contributor: 泔水喵

Result: A wonderful piece of art

When printing thin-wall or circular structures, if the model has overhang areas, print speed control is very important.

The reason for this member's failure is very simple:

When printing thin-wall circular objects, don't casually disable overhang speed reduction.

When the overhang area is printed too fast, the previous layer hasn't fully cooled before new material is stacked on top, which can easily lead to deformation, collapse, or even structural failure.

In the end, an originally neat circular model can turn into a "one-of-a-kind" piece of art.

Pitfall-avoidance advice

For thin-wall, overhang, bridge, and similar structures:

•Maintain a reasonable overhang speed reduction

•Appropriately lower the print speed

•Improve local cooling performance

•Preview the slice for complex models

Faster print speed isn't always better—complex structures need to give the material some "cooling time."

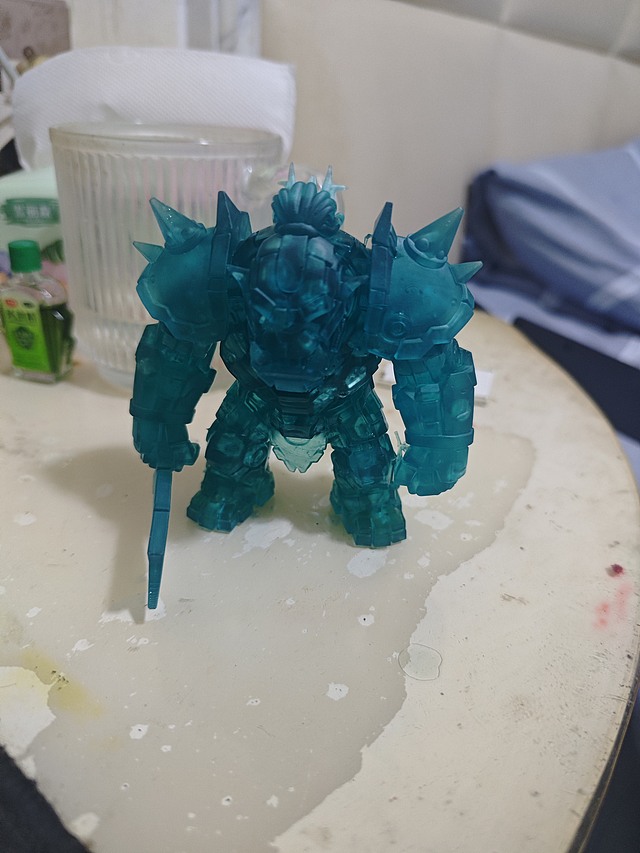

02｜Resin hollow models: remember to leave "drainage holes" inside

Contributor: 觋唐

Result: Resin

When resin-printing hollow models, there's a very easily overlooked issue: the interior must have properly placed holes.

If the model forms a completely sealed cavity inside, residual resin may not drain out smoothly during the printing process.

Even if the model surface looks complete, liquid resin may still remain inside.

If not handled in time, the following issues may appear during subsequent washing, curing, or even use:

•Residual resin inside

•Sticky surface

•Liquid seepage

•Odor

•Material changes over time

Pitfall-avoidance advice

For resin hollow models:

Hollow → Add drainage holes → Wash → Drain thoroughly → Then proceed with post-processing.

Especially for larger hollow models, you should plan the resin drainage path in advance.

A tiny drainage hole can determine whether your piece ends up as a "finished product" or "still has something inside."

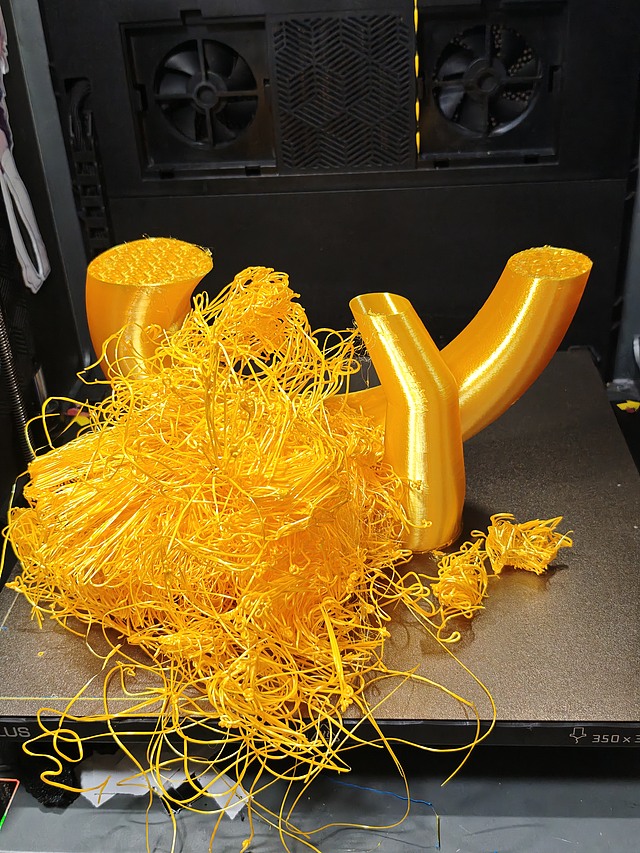

03｜"Golden fried noodles": sudden nozzle clog halfway through printing

Contributor: 嘟嘟

Result: Golden fried noodles

Seeing "golden fried noodles," many 3D printing enthusiasts should already be very familiar with this scene.

The model is still fine, but halfway through printing—clog.

Subsequent extrusion becomes insufficient, the model gradually loses its structure, and in the end, it directly turns into a plate of "golden fried noodles."

After this kind of problem occurs, the first thing to determine is: is it a nozzle clog? Or is there an issue with the extrusion system?

In this case, the problem was ultimately solved by replacing the print head.

If you encounter insufficient extrusion, you can check the following in order:

1.Whether the nozzle is clogged

2.Whether the filament enters the extrusion mechanism smoothly

3.Whether the extruder gear is slipping

4.Whether the nozzle temperature is appropriate

5.Whether the filament has any abnormalities

6.Whether the print head has any mechanical issues

Don't just adjust all parameters when you see "fried noodles."

First, locate where the extrusion anomaly occurs—that will make troubleshooting faster.

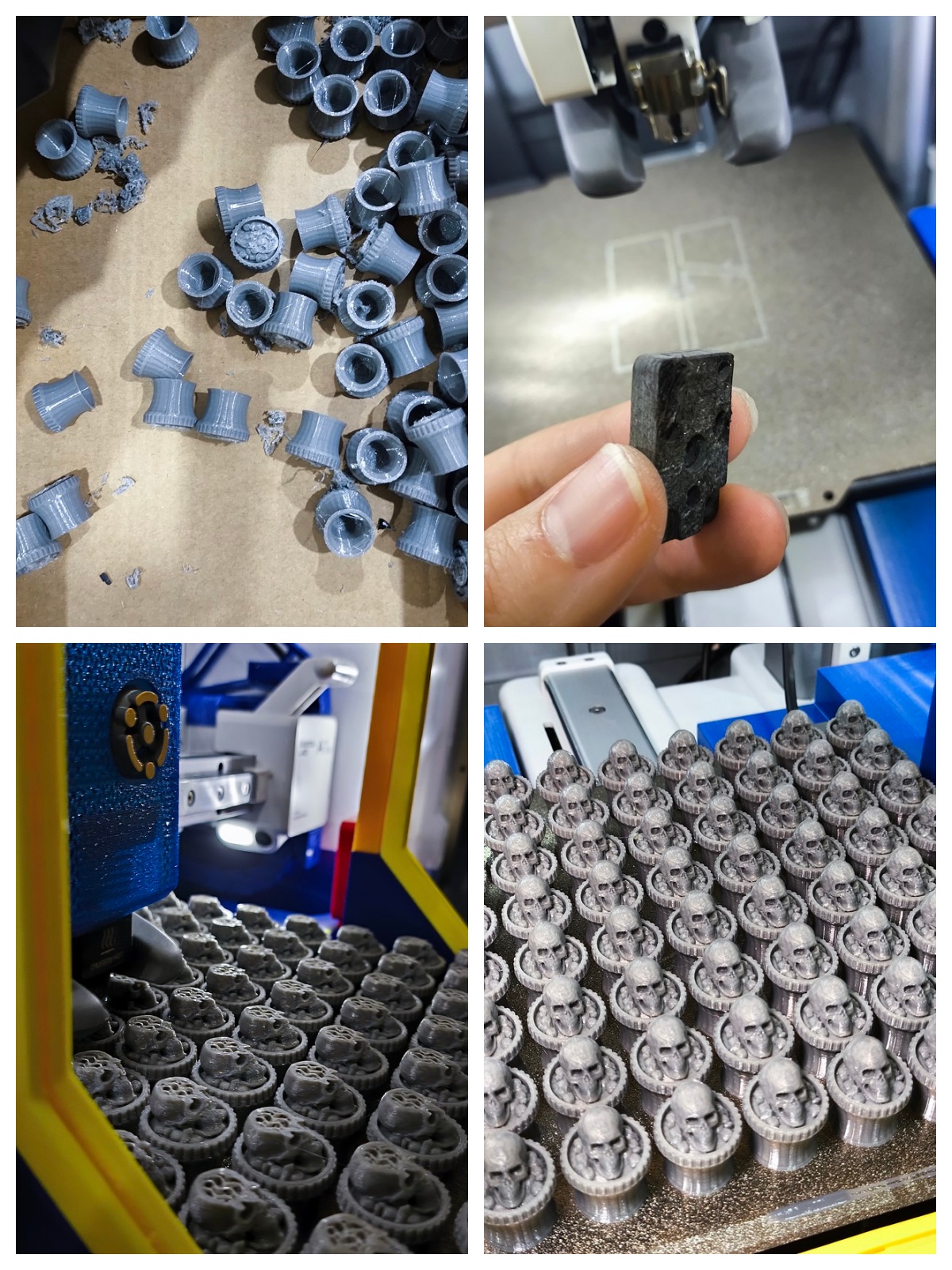

04｜0.2mm nozzle + ultra-fine layer height: one step away from perfection

Contributor: 樂

Result: 樂

This failure even made it to the "eve of victory."

0.2mm nozzle, 0.04mm layer height, full-plate printing, and it was almost done...

Then: total failure.

The cause was summarized by a community member in one sentence:

"It's all the fault of synthetic stone."

For some highly filled, specially particulate, or special composite materials, the nozzle size, layer height, and the material itself need to be matched more carefully.

After switching to a ceramic nozzle, the printing condition improved significantly.

This also reminds us:

When using special filled materials, don't just focus on "can it print," but also pay attention to:

Whether material characteristics × nozzle material × nozzle diameter × layer height × print speed are compatible with each other.

Sometimes, the parameters are correct, the machine is correct, and the real problem may come from the combination of the material and the printing hardware.

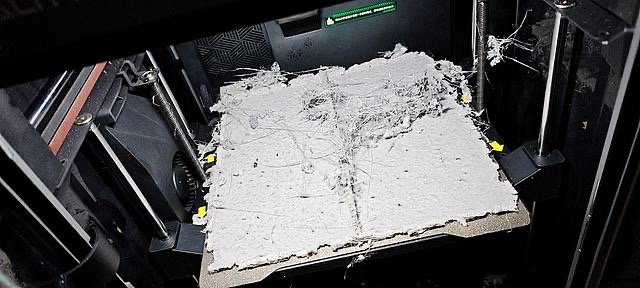

05｜Nozzle tip detachment: very rare, but it can happen

Contributor: long

Result: No way, teach me

This malfunction was quite rare.

The printer was a Tri-wheel K2 Pro. During printing, the hardened steel portion of the nozzle tip detached.

The result was:

Abnormal extrusion → excessive material buildup → forming a huge "pancake."

Under normal circumstances, the nozzle tip doesn't detach easily. Based on the scene, community members speculated that the nozzle may have experienced a strong mechanical collision with the build plate, model, or other components.

The biggest reminder from this case is: don't leave your printer completely "unattended."

Especially: the first layer.

If problems occur on the first layer and the machine keeps running, at best the model detaches, and at worst:

•Nozzle collides with the model

•Abnormal extrusion

•Large-area material buildup

•Print head contamination

•Hardware damage

So, even though today's 3D printers are increasingly intelligent, the first layer is still worth a personal look.

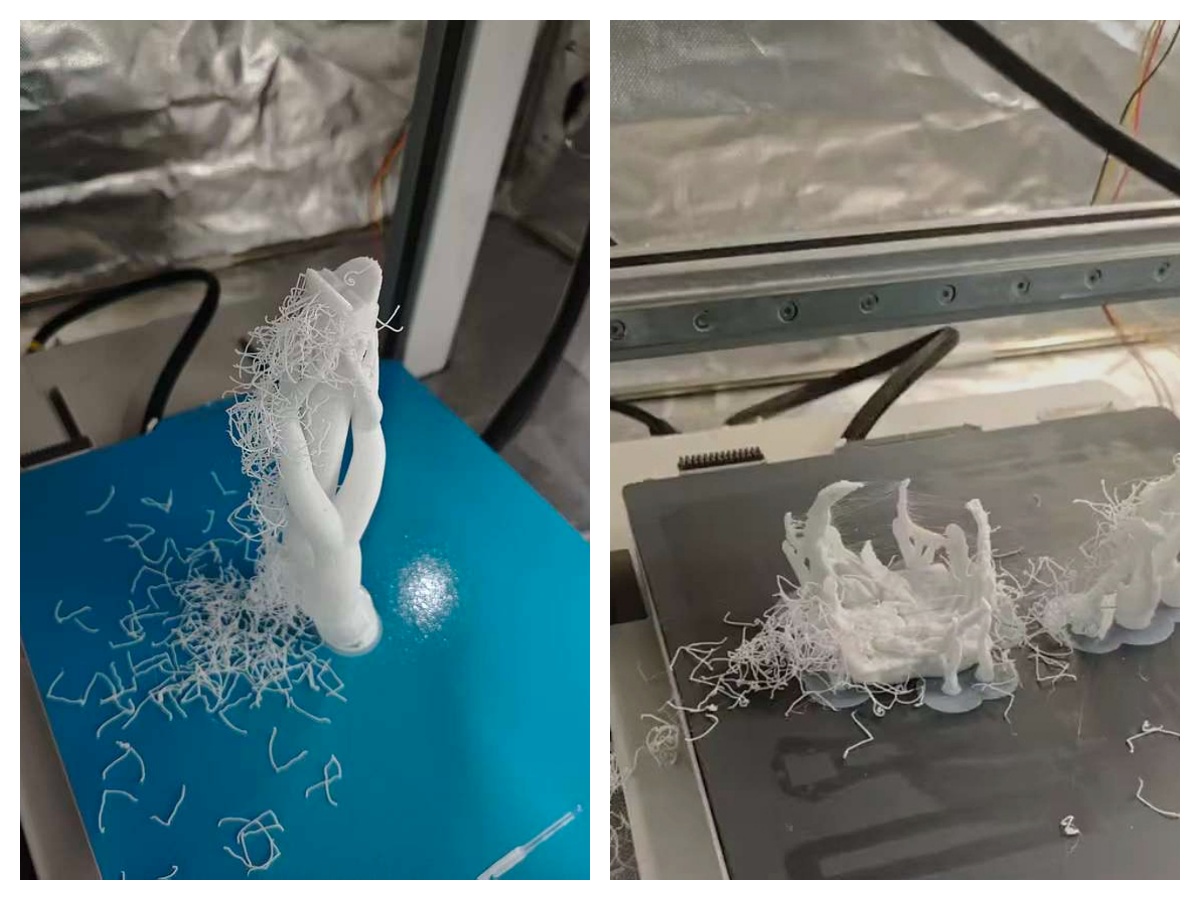

06｜No matter how you adjust parameters, it still fails? It might really be a filament issue

Contributor: 云海

Result: 3D printing fried noodle troubleshooting—filament quality issue itself

This is a very typical and highly valuable troubleshooting case.

After the "fried noodles" appeared, the community member performed the following in order:

•Bed leveling

•Temperature adjustment

•Slicing parameter adjustment

•Filament drying

But the problem persisted.

Then they switched to another roll of normal filament and reprinted without changing the machine or slicing settings.

Result: the fried noodle phenomenon disappeared, and printing returned to normal.

This shows that after equipment, parameters, and moisture factors are progressively ruled out, the filament itself should also enter the troubleshooting scope.

When encountering stubborn printing anomalies, try "cross-validation."

For example: same machine + same parameter set + switch to another roll of filament.

If the problem noticeably disappears after the swap, you can further determine the source of the issue—this is also a very direct way to assess filament stability.

Not every failed print should first be blamed on the machine.

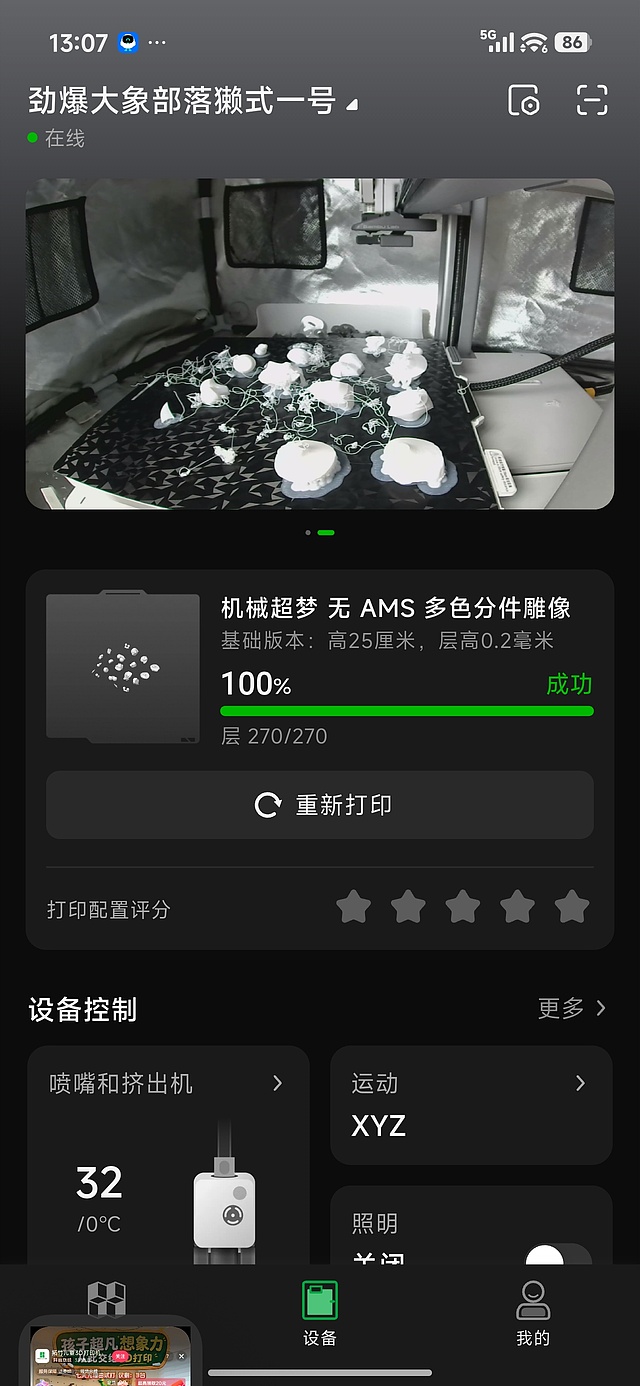

07｜Insufficient build plate adhesion: replacing the plate + cleaning is often more direct than repeatedly adjusting parameters

Contributor: 。。

Result: Replacing the build plate

A classic "fried noodles" scene.

The model didn't firmly stick to the build plate. As printing continued, the model gradually detached, finally forming the familiar "fried noodles."

This time, the solution was very direct:

Replace with a cold build plate, or clean the plate surface with dish soap. The community member recommended the ANTINSKY cold build plate, which has strong adhesion.

The build plate is the first contact surface between the model and the machine.

If the plate surface has:

•Oil stains

•Dust

•Residual adhesive

•Wear

•Surface contamination

All of these can affect first-layer adhesion.

So don't forget before printing: keep the build plate clean.

Sometimes, washing the plate is more effective than modifying your slicing parameters ten times.

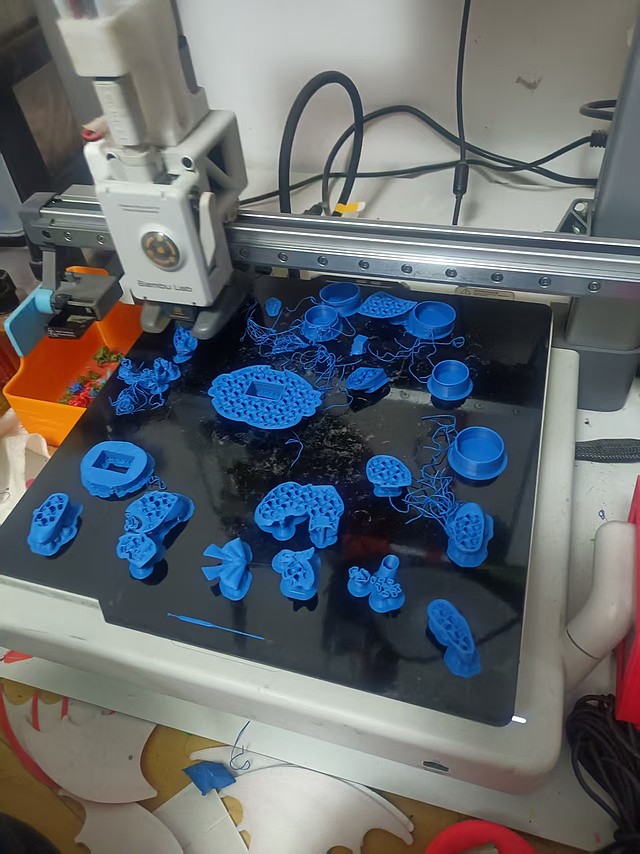

08｜"Our founder started his great enterprise halfway, and then stringing occurred midway"

Contributor: 怪咖

This time, Bambu Lab matte PLA was used.

At first, to prevent the model from detaching, adhesive spray was even applied to the build plate in advance.

But as printing progressed further:

Stringing became increasingly obvious, and the model even began to gradually detach from the build plate.

This kind of situation shows that stringing and first-layer adhesion are actually two different issues. Adhesive spray can help improve adhesion, but it cannot directly solve stringing.

If obvious stringing occurs, focus on checking:

•Whether the filament is moist

•Whether the nozzle temperature is too high

•Whether the retraction parameters are appropriate

•Whether the print speed is reasonable

•Whether there is residual material on the nozzle

Therefore, when encountering a problem, don't fixate on just one parameter.

When you see stringing, solve the stringing first; when you see detachment, then check adhesion.

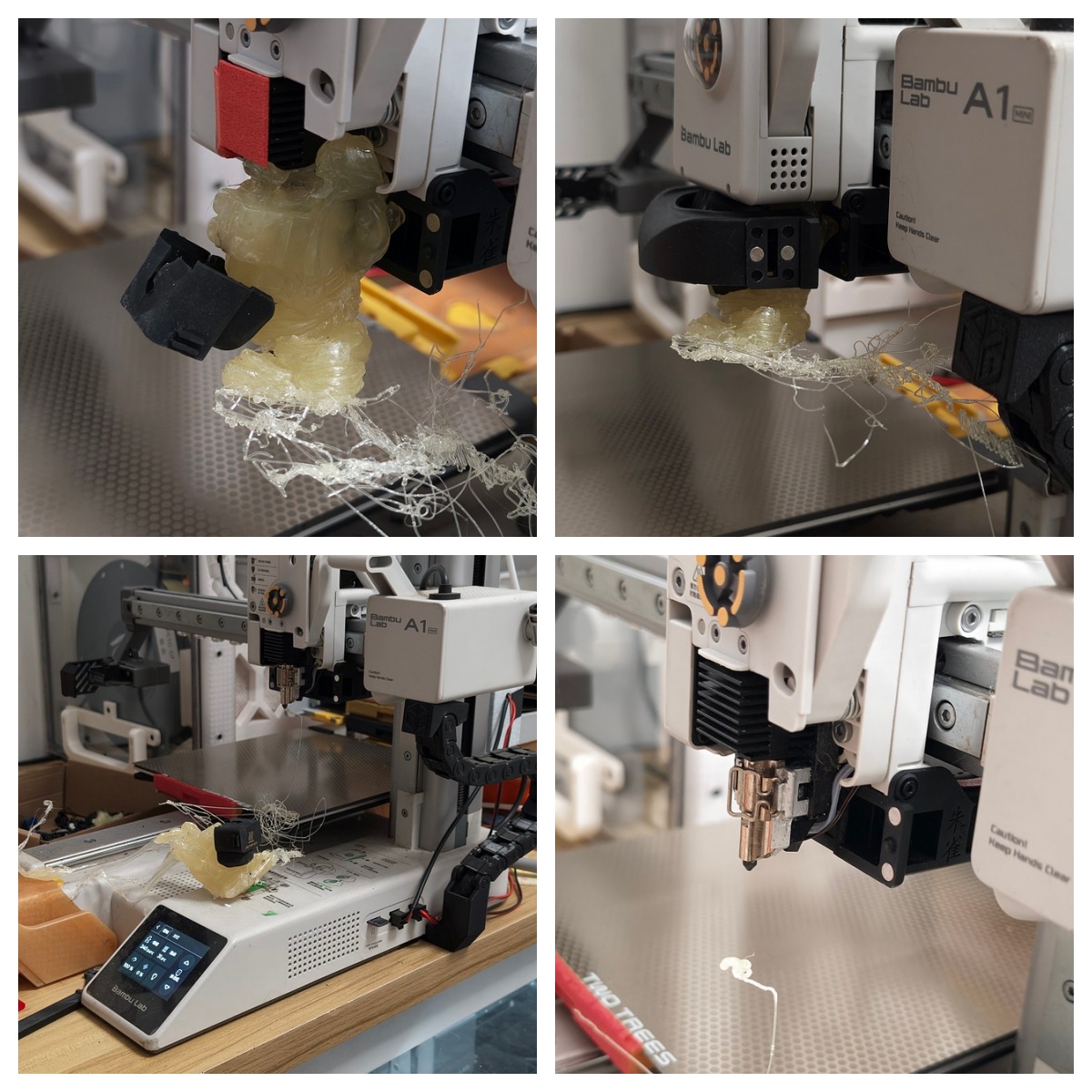

09｜"Perfect injection molding machine": the importance of build plate maintenance

Contributor: 在下方长

Result: Print head wrapped into a perfect injection molding machine, and the solution

This is a scene many 3D printing enthusiasts don't want to see: the entire print head wrapped in filament.

The community member vividly called it:

"A perfect injection molding machine."

One important cause of this problem is that after long-term use, the build plate's adhesion decreases, the model gradually detaches, and molten filament continues to extrude and accumulate around the nozzle.

Handling method

For the Bambu Lab A1 series, the community member shared their handling experience:

After heating the nozzle, clean the residual filament bit by bit, and gradually soften the residue by adjusting the temperature.

During the process, pay special attention to: the thermal-sensitive cables near the nozzle.

If the residue has severely wrapped the print head, further disassembly may be required.

But for ordinary users, what matters more is not "how to disassemble," but rather: try to prevent it from reaching that point.

Regularly cleaning the build plate, checking first-layer status, and promptly detecting model detachment can all reduce the probability of severe print-head wrapping.

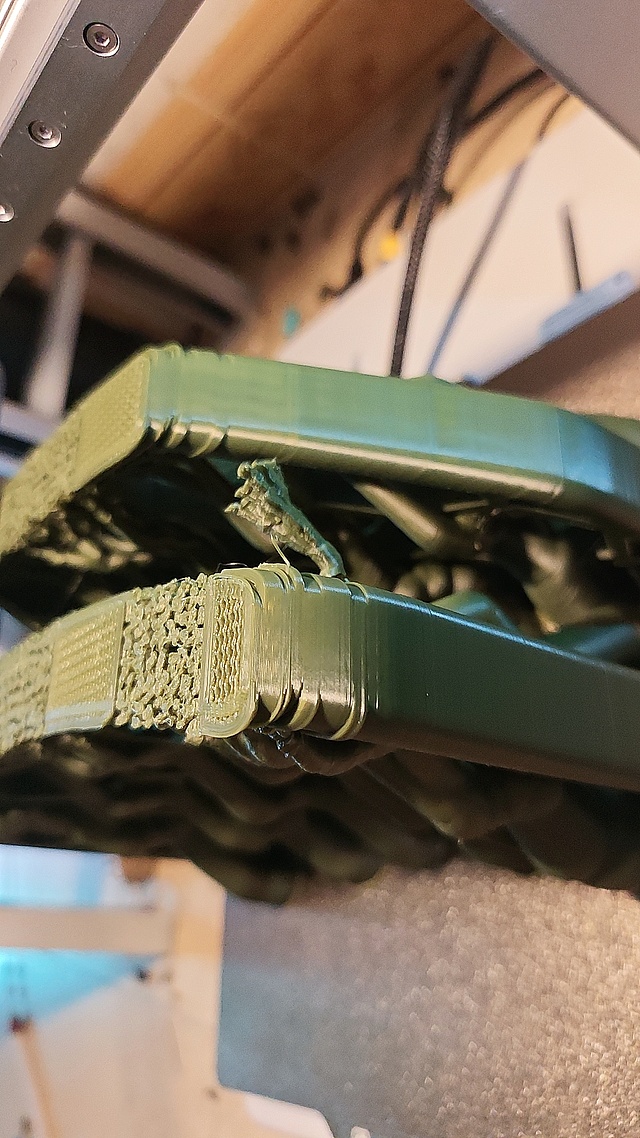

10｜Suddenly "crying": What to do when the pulley loses steps?

Contributor: 地有界心无边

Result: Crying

The name of this piece already says it all. When step loss occurs in the pulley during printing, for the mechanical motion system, the condition of rails, belts, pulleys, and other components all affect the printer's motion accuracy.

The solution provided by the community member was:

Cleaning + lubrication.

Use a lint-free cloth to clean the rails, then add suitable light lubricating oil according to the machine's requirements.

This also reminds everyone:

Although a 3D printer is a digital device, it is still a mechanical device.

Mechanical structures require maintenance.

Regularly check:

•Rails

•Belts

•Pulleys

•Lead screws

•Fans

•Nozzle

Many "minor issues" can actually be discovered before printing.

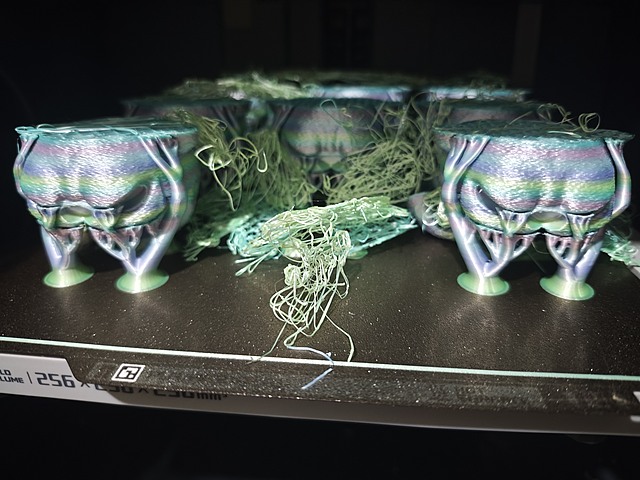

11｜"Fried noodle master": It collided, probably

Contributor: 海豹球

Result: Fried noodle master

This last one has no complex failure analysis.

Just one very honest summary:

"Fresh fried noodles—it collided, probably."

Sometimes, 3D printing failures are just that simple.

Model collision, unstable first layer, nozzle collision, model warping... any single issue can instantly turn a printer from a "precision manufacturing device" into a "fried noodle machine."

But precisely because of this, observing the printing process is very important.

Failed prints aren't scary—what matters is knowing how to troubleshoot

Putting these 11 cases together, you'll find that although the causes of 3D printing failures are incredibly varied, they can actually be summarized into several common directions:

Failure phenomenonPossible causePriority check

Model detachmentPlate contamination, insufficient adhesion, first-layer anomalyBuild plate, first layer

Fried noodlesModel detachment, nozzle anomaly, extrusion anomalyFirst layer, nozzle, extrusion

StringingTemperature, retraction, filament conditionTemperature, filament, retraction

Insufficient extrusionClog, filament, extrusion mechanismNozzle, filament feed system

Large-area material buildupModel detachment, nozzle anomalyFirst layer, nozzle

Thin-wall deformationOverhang speed, insufficient coolingOverhang parameters, fan

Residual resin insideHollow model without holes, insufficient cleaningDrainage holes, cleaning

Mechanical motion anomalyRail, belt, pulley conditionMechanical structure

Special material print failureMaterial/nozzle/parameter mismatchMaterial, nozzle, parameters

The truly effective troubleshooting approach isn't to change all parameters at once.

Instead:

Change only one variable at a time.

For example:

Same machine + same parameter set + switch filament

Or:

Same filament roll + switch nozzle

Or:

Same model + adjust first-layer parameters

By gradually ruling things out this way, you can truly find the problem.

Every failed print is experience for the next success

3D printing has never been "press start, then wait for the finished product."

It's more like a process of continuous between people, machines, materials, and models.

You'll encounter stringing, warping, clogs, detachment, and all kinds of "fried noodles" that make you laugh or cry.

But once you start to know:

Why it failed, how to determine the cause, how to troubleshoot quickly,

These failures are no longer just failures.

They become experience for the next successful print.

This is also the meaning of our community case sharing—turning one person's failure into everyone's pitfall-avoidance guide.

Thank you to every community member who participated in this sharing, and we also welcome everyone to continue showing off your own "failure scenes."

Because in the world of 3D printing: successful works deserve to be displayed, and failed works equally deserve to be seen.
